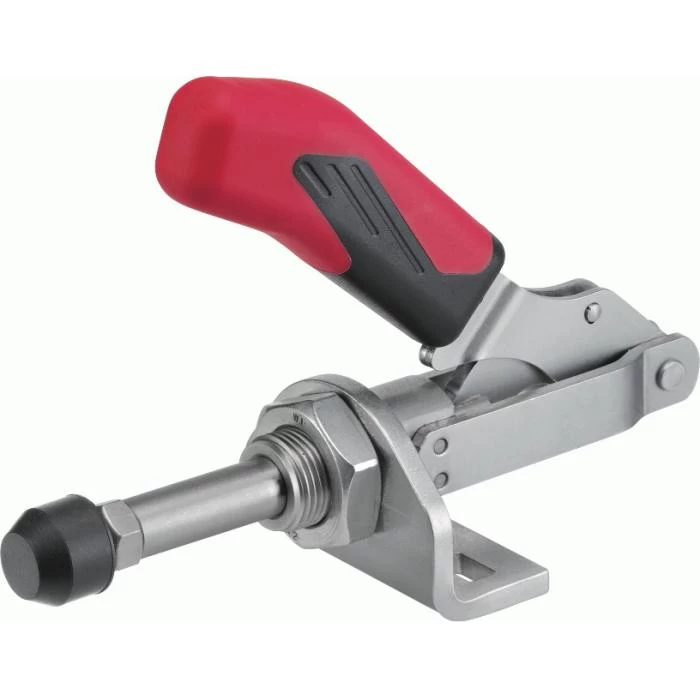

Bride à Pousser « AMF » – Avec Un Petit Pied D’angle – Longueur 90-239 Mm

Domaine d’utilisation

• Horizontal toggle clamp « AMF » for quick and secure clamping of workpieces in production

Utilisation

• Pressure and tension clamp (push rod and lever parallel)
• Long rod-guide with mounting thread and nut
• Zinc-plated and passivated
• Rivets of stainless steel
• at size 3 in cased-harden bushings
• Lever parts and rod of tempered steel
• Handle made of oil-resistant plastic
• Lever in any angular position to the base rotation
• Complete with tempered, galvanized pressure screws
• The release can be secured without the angled walls of sheet metal
• or screwed into the device body with its thread

Données techniques

• Material – Steel
• Size – 0-5
• Force F1 – 0.8 to 4.5
• Force F2 – 0.8 to 4.5
• Height – 46-131 mm
• Length – 90-239 mm
• Screw – M4x20 to M12x50
